Extended functionality for pyMOR models
Imports
StationaryModel
def StationaryModel(
operator, rhs, output_functional:NoneType=None, products:NoneType=None, error_estimator:NoneType=None,
visualizer:NoneType=None, name:NoneType=None, data:NoneType=None
):Extend pyMOR’s StationaryModel to include a data attribute for storing, e.g., the model’s grid.
\ddot{x}+2\zeta\omega_0 \dot{x} + \omega_0^2 x = 0
\dot{x}=v
\dot{v}+2\zeta\omega_0 v + \omega_0^2 x = 0
u=(x, v)^T
\dot{u}+ Au= 0
A = \begin{pmatrix}0 & 1 \\ \omega_0^2 & 2\zeta\omega_0\end{pmatrix}
A = NumpyMatrixOperator(np.array([[0., 1.], [1., 1.]]))rhs = NumpyMatrixOperator(np.array([[0.], [0.]]))model = StationaryModel(A, rhs)The evolution of a damped harmonic oscillator is given by \ddot{x}+2\zeta\omega_0 \dot{x} + \omega_0^2 x = 0. Setting \dot{x}=v, we have \dot{v}+2\zeta\omega_0 v + \omega_0^2 x = 0. To write in vector notation, we define u=(x, v)^T. Then the evolution equation is given by \dot{u}+ Au=0, with A = \begin{pmatrix}0 & -1 \\ \omega_0^2 & 2\zeta\omega_0\end{pmatrix}.
dof = Coordinates({'dof': ('dof', ['x', 'v'], {'long_name': "Degrees of freedom"})})
space = XarrayVectorSpace(dof)
A = XarrayMatrixOperator(np.array([[0., -1.], [0., 0.]]), source=space, range=space)
B = XarrayMatrixOperator(np.array([[0., 0.], [1., 0.]]), source=space, range=space)
C = XarrayMatrixOperator(np.array([[0., 0.], [0., 1.]]), source=space, range=space)
operator = LincombOperator(
[A, B, C],
[
1.,
ExpressionParameterFunctional("w0**2", Parameters({'w0': 1})),
ExpressionParameterFunctional("2*w0*c", Parameters({'w0': 1, 'c': 1}))
]
)
rhs = space.from_numpy(np.array([[0], [0.]]))model = StationaryModel(operator, rhs)StationaryModel.solve
def solve(
mu:NoneType=None, input:NoneType=None, return_error_estimate:bool=False, **kwargs
):Extend StationaryModel.solve to solve over a range of parameters.
model.solve({'w0': 1, 'c':.1})∅ ⛒ dof(2)
<xarray.DataArray (dof: 2)> Size: 16B array([ 0., -0.]) Coordinates: * dof (dof) <U1 8B 'x' 'v'
model.solve([{'w0': 1}, {'c':np.linspace(.5, 1., 3)}])c(3) ⛒ dof(2)
<xarray.DataArray (c: 3, dof: 2)> Size: 48B
array([[ 0., -0.],
[ 0., -0.],
[ 0., -0.]])
Coordinates:
* c (c) float64 24B 0.5 0.75 1.0
* dof (dof) <U1 8B 'x' 'v'InstationaryModel
def InstationaryModel(
T, initial_data, operator, rhs, mass:NoneType=None, time_stepper:NoneType=None, num_values:NoneType=None,
output_functional:NoneType=None, products:NoneType=None, error_estimator:NoneType=None, visualizer:NoneType=None,
name:NoneType=None, data:NoneType=None
):Extend pyMOR’s InstationaryModel to include a data attribute for storing, e.g., the model’s grid.
The evolution of a damped harmonic oscillator is given by \ddot{x}+2\zeta\omega_0 \dot{x} + \omega_0^2 x = 0. Setting \dot{x}=v, we have \dot{v}+2\zeta\omega_0 v + \omega_0^2 x = 0. To write in vector notation, we define u=(x, v)^T. Then the evolution equation is given by \dot{u}+ Au=0, with A = \begin{pmatrix}0 & -1 \\ \omega_0^2 & 2\zeta\omega_0\end{pmatrix}.
dof = Coordinates({'dof': ('dof', ['x', 'v'], {'long_name': "Degrees of freedom"})})
space = XarrayVectorSpace(dof)
A = XarrayMatrixOperator(np.array([[0., -1.], [0., 0.]]), source=space, range=space)
B = XarrayMatrixOperator(np.array([[0., 0.], [1., 0.]]), source=space, range=space)
C = XarrayMatrixOperator(np.array([[0., 0.], [0., 1.]]), source=space, range=space)
operator = LincombOperator(
[A, B, C],
[
1.,
ExpressionParameterFunctional("w0**2", Parameters({'w0': 1})),
ExpressionParameterFunctional("2*w0*c", Parameters({'w0': 1, 'c': 1}))
]
)
rhs = space.from_numpy(np.array([[0], [0.]]))initial_data = space.from_numpy(np.array([1., 0.]))
T = 200instationary = InstationaryModel(T, initial_data, operator, rhs, time_stepper=AdamsTimeStepper(), num_values=1000)instationary_sol = instationary.solve(dict(c=.4, w0="sin(t)"))instationary_sol.visualize()Unable to display output for mime type(s): application/vnd.plotly.v1+json# A = NumpyMatrixOperator(np.array([[0., -1.], [1., 0]]))
# B = NumpyMatrixOperator(np.array([[0., 0.], [0., 1.]]))
# operator = LincombOperator(
# [A, B],
# [
# ExpressionParameterFunctional("w0**2", Parameters({'w0': 1})),
# ExpressionParameterFunctional("w0*c", Parameters({'c': 1, 'w0': 1}))
# ]
# )
# rhs = NumpyMatrixOperator(np.array([[.1], [0.]]))
# space = NumpyVectorSpace(2)
# initial_data = space.from_numpy(np.array([1., 0.]))
# T = 200
# model = InstationaryModel(T, initial_data, operator, rhs, time_stepper=ImplicitMidpointTimeStepper(1000))
# sol = model.solve(dict(c=.1, w0="sin(t)"))
# plt.plot(np.linspace(0, T, len(sol)), sol.to_numpy().T)
# dof = Coordinates({'dof': ('dof', ['x', 'v'], {'long_name': "Degrees of freedom"})})
# space = XarrayVectorSpace(dof)
# A = XarrayMatrixOperator(np.array([[0., -1.], [1., 0]]), source=space, range=space)
# B = XarrayMatrixOperator(np.array([[0., 0.], [0., 1.]]), source=space, range=space)
# operator = LincombOperator(
# [A, B],
# [
# ExpressionParameterFunctional("w0**2", Parameters({'w0': 1})),
# ExpressionParameterFunctional("c", Parameters({'c': 1}))
# ]
# )
# rhs = space.from_numpy(np.array([[.1], [0.]]))
# initial_data = space.from_numpy(np.array([1., 0.]))
# T = 200
# instationary = InstationaryModel(T, initial_data, operator, rhs, time_stepper=AdamsTimeStepper(), num_values=1000)
# instationary_sol = instationary.solve(dict(c=.1, w0="sin(t)"))
# instationary_sol.visualize()Consider a vector differential equation for y_i(t): \dot{y}_i(t)=A_{ij}(\omega t)y_j(t) + b_{i}, where b_i is a constant vector and A_{ij}(\omega t) is a matrix that varies periodically with t at frequency \omega. We approximate A by a Fourier series of order \ell: A(\omega t)\approx\sum_{k=-\ell}^{\ell}A_k e^{ik\omega t}.
We are interested in solutions that are periodic in time, so we can expand y_i(t) in a Fourier series: y_i(t)=\sum_{n=-\infty}^{\infty}y_{ni}e^{in\omega t}. Substituting into the evolution equation, we have \sum_{n=-\infty}^{\infty}in\omega y_{ni}e^{in\omega t}=\sum_{k=-\ell}^{\ell}A_{kij}e^{ik\omega t}\sum_{m=-\infty}^{\infty}y_{mj}e^{im\omega t} + b_{i}. Let n=k+m on the right hand side of the equation. We can then rearrange to find \sum_{n=-\infty}^{\infty}in\omega y_{ni}e^{in\omega t}=\sum_{n-m=-\ell}^{\ell}A_{n-m,ij}e^{i(n-m)\omega t}\sum_{m=-\infty}^{\infty}y_{mj}e^{im\omega t} + b_{i}.
\sum_{nm}in\omega\delta_{nm}y_{ni}e^{in\omega t}=\sum_{nm}A_{n-m,ij}e^{in\omega t}y_{mj} + b_{i}.
\sum_{nm}(in\omega\delta_{nm}y_{ni}-A_{n-m,ij}y_{mj}) e^{in\omega t} = b_{i}.
\sum_{nm}(in\omega\delta_{nm}\delta_{ij}-A_{n-m,ij})y_{mj}e^{in\omega t} = b_{i}.
Equating terms gives (D_{nmij}-A_{n-m,ij})y_{mj}= \delta_nb_{i}, with D_{nmij}=in\omega\delta_{nm}\delta_{ij}
to_sympy(ProductParameterFunctional([ExpressionParameterFunctional("3*a", {'a': 1}), 4., 5.]))\displaystyle 60.0 a
sy.symbols(['t', 'nu'])[t, nu]mu=dict(w0="sin(nu*t)")operator = operator.partial_assemble(Mu({'c': .1}))expr = to_sympy(operator.coefficients[1]).subs(mu)
expr\displaystyle \sin^{2}{\left(\nu t \right)}
operator.coefficients[1]ExpressionParameterFunctional('w0**2', {w0: 1})n_operator = 4
n_vector = 5series = fourier_series(expr, 5)
series\displaystyle - \frac{e^{2 i t}}{4} + \frac{1}{2} - \frac{e^{- 2 i t}}{4}
t=np.linspace(0, 1, 200)

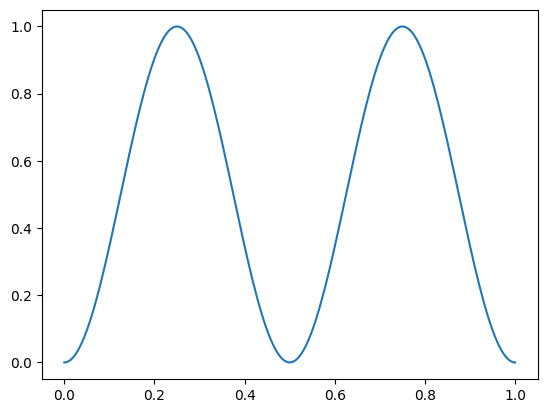

plt.plot(t, [complex(series.subs(dict(t=2*np.pi*t))).real for t in t])
expr = ExpressionParameterFunctional("nu*t/(2*pi)", {'nu': 1, 't': 1})saw_series = fourier_series(to_sympy(expr), 10)
saw_series\displaystyle - \frac{i e^{11 i t}}{22 \pi} + \frac{i e^{10 i t}}{20 \pi} - \frac{i e^{9 i t}}{18 \pi} + \frac{i e^{8 i t}}{16 \pi} - \frac{i e^{7 i t}}{14 \pi} + \frac{i e^{6 i t}}{12 \pi} - \frac{i e^{5 i t}}{10 \pi} + \frac{i e^{4 i t}}{8 \pi} - \frac{i e^{3 i t}}{6 \pi} + \frac{i e^{2 i t}}{4 \pi} - \frac{i e^{i t}}{2 \pi} + \frac{i e^{- i t}}{2 \pi} - \frac{i e^{- 2 i t}}{4 \pi} + \frac{i e^{- 3 i t}}{6 \pi} - \frac{i e^{- 4 i t}}{8 \pi} + \frac{i e^{- 5 i t}}{10 \pi} - \frac{i e^{- 6 i t}}{12 \pi} + \frac{i e^{- 7 i t}}{14 \pi} - \frac{i e^{- 8 i t}}{16 \pi} + \frac{i e^{- 9 i t}}{18 \pi} - \frac{i e^{- 10 i t}}{20 \pi} + \frac{i e^{- 11 i t}}{22 \pi}
t=np.linspace(0, 1, 200)

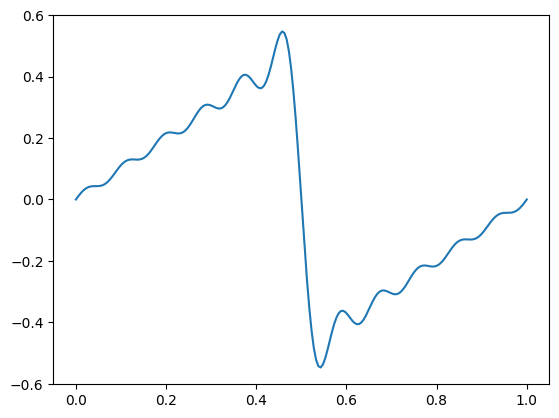

plt.plot(t, [complex(saw_series.subs(dict(t=2*np.pi*t))).real for t in t])
fourier_series_coefficients
def fourier_series_coefficients(
series:sympy.core.expr.Expr, n:int, t:str='t'
):Returns the positive and negative Fourier series coefficients up to and including order n.
fourier_series_coefficients(series, 3)array([0, -1/4, 0, 1/2, 0, -1/4, 0], dtype=object)fourier_series_coefficients(saw_series, 3)array([I/(6*pi), -I/(4*pi), I/(2*pi), 0, -I/(2*pi), I/(4*pi), -I/(6*pi)],
dtype=object)fourier_expansion_operator
def fourier_expansion_operator(
coefficient, n_operator, n_vector, mu:dict=None, t:str='t', nu:str='nu'
)->numpy.ndarray:Coefficients of complex Fourier series of expr in variable t at frequency nu.
Assumes that either the coefficients are numerical, or there is only the zero-order coefficient. Could be useful to generalize.
fourier_expansion_operator(operator.coefficients[0], n_operator, n_vector, mu)-
- LincombOperator
- Fourier coefficient(11) → Fourier coefficient(11)
- []
-
- IdentityOperator
- Fourier coefficient(11) → Fourier coefficient(11)
- []
fourier_expansion_operator(operator.coefficients[1], n_operator, n_vector, mu)-
- XarrayMatrixOperator
- Fourier coefficient(11) → Fourier coefficient(11)
- []
<xarray.DataArray (Fourier coefficient (range): 11, Fourier coefficient (source): 11)> Size: 928B <COO: shape=(11, 11), dtype=complex128, nnz=29, fill_value=0j> Coordinates: * Fourier coefficient (range) (Fourier coefficient (range)) int64 88B -5 ... * Fourier coefficient (source) (Fourier coefficient (source)) int64 88B -5...
operator.coefficients[2]ExpressionParameterFunctional('0.2*w0', {w0: 1})fourier_expansion_operator(operator.coefficients[2], n_operator, n_vector, mu)-
- XarrayMatrixOperator
- Fourier coefficient(11) → Fourier coefficient(11)
- []
<xarray.DataArray (Fourier coefficient (range): 11, Fourier coefficient (source): 11)> Size: 640B <COO: shape=(11, 11), dtype=complex128, nnz=20, fill_value=0j> Coordinates: * Fourier coefficient (range) (Fourier coefficient (range)) int64 88B -5 ... * Fourier coefficient (source) (Fourier coefficient (source)) int64 88B -5...
fourier_expand
FourierExpandRules
def FourierExpandRules(
n_operator:int, n_vector:int, mu:dict | None=None, t:str='t', nu:str='nu'
):|RuleTable| to Fourier expand an operator.
fourier_expand
def fourier_expand(
obj, n_operator:int, n_vector:int, mu:dict | None=None, t:str='t', nu:str='nu'
):fourier_expand(operator, n_operator, n_vector, mu=mu)-
- LincombOperator
- Fourier coefficient(11) ⛒ dof(2) → Fourier coefficient(11) ⛒ dof(2)
- []
-
- ProductOperator
- Fourier coefficient(11) ⛒ dof(2) → Fourier coefficient(11) ⛒ dof(2)
- []
-
- LincombOperator
- Fourier coefficient(11) → Fourier coefficient(11)
- []
-
- IdentityOperator
- Fourier coefficient(11) → Fourier coefficient(11)
- []
⛒
-
- XarrayMatrixOperator
- dof(2) → dof(2)
- []
<xarray.DataArray (dof (range): 2, dof (source): 2)> Size: 32B array([[ 0., -1.], [ 0., 0.]]) Coordinates: * dof (range) (dof (range)) <U1 8B 'x' 'v' * dof (source) (dof (source)) <U1 8B 'x' 'v'
+
-
- ProductOperator
- Fourier coefficient(11) ⛒ dof(2) → Fourier coefficient(11) ⛒ dof(2)
- []
-
- XarrayMatrixOperator
- Fourier coefficient(11) → Fourier coefficient(11)
- []
<xarray.DataArray (Fourier coefficient (range): 11, Fourier coefficient (source): 11)> Size: 928B <COO: shape=(11, 11), dtype=complex128, nnz=29, fill_value=0j> Coordinates: * Fourier coefficient (range) (Fourier coefficient (range)) int64 88B -5 ... * Fourier coefficient (source) (Fourier coefficient (source)) int64 88B -5...
⛒
-
- XarrayMatrixOperator
- dof(2) → dof(2)
- []
<xarray.DataArray (dof (range): 2, dof (source): 2)> Size: 32B array([[0., 0.], [1., 0.]]) Coordinates: * dof (range) (dof (range)) <U1 8B 'x' 'v' * dof (source) (dof (source)) <U1 8B 'x' 'v'
+
-
- ProductOperator
- Fourier coefficient(11) ⛒ dof(2) → Fourier coefficient(11) ⛒ dof(2)
- []
-
- XarrayMatrixOperator
- Fourier coefficient(11) → Fourier coefficient(11)
- []
<xarray.DataArray (Fourier coefficient (range): 11, Fourier coefficient (source): 11)> Size: 640B <COO: shape=(11, 11), dtype=complex128, nnz=20, fill_value=0j> Coordinates: * Fourier coefficient (range) (Fourier coefficient (range)) int64 88B -5 ... * Fourier coefficient (source) (Fourier coefficient (source)) int64 88B -5...
⛒
-
- XarrayMatrixOperator
- dof(2) → dof(2)
- []
<xarray.DataArray (dof (range): 2, dof (source): 2)> Size: 32B array([[0., 0.], [0., 1.]]) Coordinates: * dof (range) (dof (range)) <U1 8B 'x' 'v' * dof (source) (dof (source)) <U1 8B 'x' 'v'
d_term(n_vector)/Users/simon/Development/pyLGS/pylgs/pylgs/utilities/sparse.py:55: FutureWarning: Input has data type int64, but the output has been cast to float64. In the future, the output data type will match the input. To avoid this warning, set the `dtype` parameter to `None` to have the output dtype match the input, or set it to the desired output data type.
return sps.diags_array(diags, offsets=offsets)-
- LincombOperator
- Fourier coefficient(11) → Fourier coefficient(11)
- ['nu']
-
- XarrayMatrixOperator
- Fourier coefficient(11) → Fourier coefficient(11)
- []
<xarray.DataArray (Fourier coefficient (range): 11, Fourier coefficient (source): 11)> Size: 160B <COO: shape=(11, 11), dtype=float64, nnz=10, fill_value=0.0> Coordinates: * Fourier coefficient (range) (Fourier coefficient (range)) int64 88B -5 ... * Fourier coefficient (source) (Fourier coefficient (source)) int64 88B -5...
floquet_expand
def floquet_expand(
op, n_operator, n_vector, mu:dict=None, t:str='t', nu:str='nu'
):floquet_expand(operator, n_operator, n_vector, mu)/Users/simon/Development/pyLGS/pylgs/pylgs/utilities/sparse.py:55: FutureWarning: Input has data type int64, but the output has been cast to float64. In the future, the output data type will match the input. To avoid this warning, set the `dtype` parameter to `None` to have the output dtype match the input, or set it to the desired output data type.
return sps.diags_array(diags, offsets=offsets)-
- LincombOperator
- Fourier coefficient(11) ⛒ dof(2) → Fourier coefficient(11) ⛒ dof(2)
- ['nu']
-
- ProductOperator
- Fourier coefficient(11) ⛒ dof(2) → Fourier coefficient(11) ⛒ dof(2)
- ['nu']
-
- LincombOperator
- Fourier coefficient(11) → Fourier coefficient(11)
- ['nu']
-
- XarrayMatrixOperator
- Fourier coefficient(11) → Fourier coefficient(11)
- []
<xarray.DataArray (Fourier coefficient (range): 11, Fourier coefficient (source): 11)> Size: 160B <COO: shape=(11, 11), dtype=float64, nnz=10, fill_value=0.0> Coordinates: * Fourier coefficient (range) (Fourier coefficient (range)) int64 88B -5 ... * Fourier coefficient (source) (Fourier coefficient (source)) int64 88B -5...
⛒
-
- IdentityOperator
- dof(2) → dof(2)
- []
+
-
- ProductOperator
- Fourier coefficient(11) ⛒ dof(2) → Fourier coefficient(11) ⛒ dof(2)
- []
-
- LincombOperator
- Fourier coefficient(11) → Fourier coefficient(11)
- []
-
- IdentityOperator
- Fourier coefficient(11) → Fourier coefficient(11)
- []
⛒
-
- XarrayMatrixOperator
- dof(2) → dof(2)
- []
<xarray.DataArray (dof (range): 2, dof (source): 2)> Size: 32B array([[ 0., -1.], [ 0., 0.]]) Coordinates: * dof (range) (dof (range)) <U1 8B 'x' 'v' * dof (source) (dof (source)) <U1 8B 'x' 'v'
+
-
- ProductOperator
- Fourier coefficient(11) ⛒ dof(2) → Fourier coefficient(11) ⛒ dof(2)
- []
-
- XarrayMatrixOperator
- Fourier coefficient(11) → Fourier coefficient(11)
- []
<xarray.DataArray (Fourier coefficient (range): 11, Fourier coefficient (source): 11)> Size: 928B <COO: shape=(11, 11), dtype=complex128, nnz=29, fill_value=0j> Coordinates: * Fourier coefficient (range) (Fourier coefficient (range)) int64 88B -5 ... * Fourier coefficient (source) (Fourier coefficient (source)) int64 88B -5...
⛒
-
- XarrayMatrixOperator
- dof(2) → dof(2)
- []
<xarray.DataArray (dof (range): 2, dof (source): 2)> Size: 32B array([[0., 0.], [1., 0.]]) Coordinates: * dof (range) (dof (range)) <U1 8B 'x' 'v' * dof (source) (dof (source)) <U1 8B 'x' 'v'
+
-
- ProductOperator
- Fourier coefficient(11) ⛒ dof(2) → Fourier coefficient(11) ⛒ dof(2)
- []
-
- XarrayMatrixOperator
- Fourier coefficient(11) → Fourier coefficient(11)
- []
<xarray.DataArray (Fourier coefficient (range): 11, Fourier coefficient (source): 11)> Size: 640B <COO: shape=(11, 11), dtype=complex128, nnz=20, fill_value=0j> Coordinates: * Fourier coefficient (range) (Fourier coefficient (range)) int64 88B -5 ... * Fourier coefficient (source) (Fourier coefficient (source)) int64 88B -5...
⛒
-
- XarrayMatrixOperator
- dof(2) → dof(2)
- []
<xarray.DataArray (dof (range): 2, dof (source): 2)> Size: 32B array([[0., 0.], [0., 1.]]) Coordinates: * dof (range) (dof (range)) <U1 8B 'x' 'v' * dof (source) (dof (source)) <U1 8B 'x' 'v'
_kron_vector(fourier_space(n_vector)) * rhs∅ ⛒ Fourier coefficient(11) ⛒ dof(2)
<xarray.DataArray (Fourier coefficient: 11, dof: 2)> Size: 176B
array([[0., 0.],
[0., 0.],
[0., 0.],
[0., 0.],
[0., 0.],
[0., 0.],
[0., 0.],
[0., 0.],
[0., 0.],
[0., 0.],
[0., 0.]])
Coordinates:
* Fourier coefficient (Fourier coefficient) int64 88B -5 -4 -3 -2 ... 2 3 4 5
* dof (dof) <U1 8B 'x' 'v'floquet_reconstruction_array(2, np.linspace(0, 1, 3), Mu(nu=1.))<xarray.DataArray (Time: 3, Fourier coefficient: 5)> Size: 240B
array([[ 1. +0.j , 1. +0.j ,
1. +0.j , 1. +0.j ,
1. +0.j ],
[ 0.54030231+0.84147098j, 0.87758256+0.47942554j,
1. +0.j , 0.87758256-0.47942554j,
0.54030231-0.84147098j],
[-0.41614684+0.90929743j, 0.54030231+0.84147098j,
1. +0.j , 0.54030231-0.84147098j,
-0.41614684-0.90929743j]])
Coordinates:
* Time (Time) float64 24B 0.0 0.5 1.0
* Fourier coefficient (Fourier coefficient) int64 40B -2 -1 0 1 2op = floquet_reconstruction_operator(n_vector, np.linspace(0, 1, 3))op.assemble(Mu(nu=1))-
- XarrayMatrixOperator
- Fourier coefficient(11) → Time(3)
- []
<xarray.DataArray (Time (range): 3, Fourier coefficient (source): 11)> Size: 528B array([[ 1. +0.j , 1. +0.j , 1. +0.j , 1. +0.j , 1. +0.j , 1. +0.j , 1. +0.j , 1. +0.j , 1. +0.j , 1. +0.j , 1. +0.j ], [-0.80114362+0.59847214j, -0.41614684+0.90929743j, 0.0707372 +0.99749499j, 0.54030231+0.84147098j, 0.87758256+0.47942554j, 1. +0.j , 0.87758256-0.47942554j, 0.54030231-0.84147098j, 0.0707372 -0.99749499j, -0.41614684-0.90929743j, -0.80114362-0.59847214j], [ 0.28366219-0.95892427j, -0.65364362-0.7568025j , -0.9899925 +0.14112001j, -0.41614684+0.90929743j, 0.54030231+0.84147098j, 1. +0.j , 0.54030231-0.84147098j, -0.41614684-0.90929743j, -0.9899925 -0.14112001j, -0.65364362+0.7568025j , 0.28366219+0.95892427j]]) Coordinates: * Time (range) (Time (range)) float64 24B 0.0 0.5 1.0 * Fourier coefficient (source) (Fourier coefficient (source)) int64 88B -5...
StationaryFloquetModel
def StationaryFloquetModel(
operator, # System evolution operator
rhs, # System right-hand side vector
mu, # Parameter specification for parameters modulated at a frequency `nu`
n_vector, # Number of terms in the system Fourier series
time, # Time values for displaying result
nu:str='nu', # Name of the frequency variable
t:str='t', # Name of the time variable
n_operator:NoneType=None, # Number of terms in the operator Fourier series. `None` defaults to `n_vector` - 1
products:NoneType=None, name:NoneType=None, data:NoneType=None
):A model that solves for the Fourier coefficients of the periodic state of a modulated system.
floquet = StationaryFloquetModel(
operator, #.with_(solver_options={'inverse': {'type': 'scipy_lgmres_spilu'}}),
rhs,
mu,
n_vector,
time=np.linspace(0, 200, 1000)
)/Users/simon/Development/pyLGS/pylgs/pylgs/utilities/sparse.py:55: FutureWarning: Input has data type int64, but the output has been cast to float64. In the future, the output data type will match the input. To avoid this warning, set the `dtype` parameter to `None` to have the output dtype match the input, or set it to the desired output data type.
return sps.diags_array(diags, offsets=offsets)vars(floquet.operator){'operators': (ProductOperator(
[LincombOperator(
(XarrayMatrixOperator(
<xarray.DataArray (Fourier coefficient (range): 11,
Fourier coefficient (source): 11)> Size: 160B
<COO: shape=(11, 11), dtype=float64, nnz=10, fill_value=0.0>
Coordinates:
* Fourier coefficient (range) (Fourier coefficient (range)) int64 88B -5 ...
* Fourier coefficient (source) (Fourier coefficient (source)) int64 88B -5...,
source=XarrayVectorSpace(coord_data={Fourier coefficient: (array([-5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5]),)}),
range=XarrayVectorSpace(coord_data={Fourier coefficient: (array([-5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5]),)}))),
(ExpressionParameterFunctional('-(1j)*nu', {nu: 1}))),
IdentityOperator(
XarrayVectorSpace(coord_data={dof: (array(['x', 'v'], dtype='<U1'), {'long_name': 'Degrees of freedom'})}))]),
ProductOperator(
[LincombOperator(
(IdentityOperator(
XarrayVectorSpace(coord_data={Fourier coefficient: (array([-5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5]),)}))),
(1.0)),
XarrayMatrixOperator(
<xarray.DataArray (dof (range): 2, dof (source): 2)> Size: 32B
array([[ 0., -1.],
[ 0., 0.]])
Coordinates:
* dof (range) (dof (range)) <U1 8B 'x' 'v'
* dof (source) (dof (source)) <U1 8B 'x' 'v',
source=XarrayVectorSpace(coord_data={dof: (array(['x', 'v'], dtype='<U1'), {'long_name': 'Degrees of freedom'})}),
range=XarrayVectorSpace(coord_data={dof: (array(['x', 'v'], dtype='<U1'), {'long_name': 'Degrees of freedom'})}))]),
ProductOperator(
[XarrayMatrixOperator(
<xarray.DataArray (Fourier coefficient (range): 11,
Fourier coefficient (source): 11)> Size: 928B
<COO: shape=(11, 11), dtype=complex128, nnz=29, fill_value=0j>
Coordinates:
* Fourier coefficient (range) (Fourier coefficient (range)) int64 88B -5 ...
* Fourier coefficient (source) (Fourier coefficient (source)) int64 88B -5...,
source=XarrayVectorSpace(coord_data={Fourier coefficient: (array([-5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5]),)}),
range=XarrayVectorSpace(coord_data={Fourier coefficient: (array([-5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5]),)})),
XarrayMatrixOperator(
<xarray.DataArray (dof (range): 2, dof (source): 2)> Size: 32B
array([[0., 0.],
[1., 0.]])
Coordinates:
* dof (range) (dof (range)) <U1 8B 'x' 'v'
* dof (source) (dof (source)) <U1 8B 'x' 'v',
source=XarrayVectorSpace(coord_data={dof: (array(['x', 'v'], dtype='<U1'), {'long_name': 'Degrees of freedom'})}),
range=XarrayVectorSpace(coord_data={dof: (array(['x', 'v'], dtype='<U1'), {'long_name': 'Degrees of freedom'})}))]),
ProductOperator(
[XarrayMatrixOperator(
<xarray.DataArray (Fourier coefficient (range): 11,
Fourier coefficient (source): 11)> Size: 640B
<COO: shape=(11, 11), dtype=complex128, nnz=20, fill_value=0j>
Coordinates:
* Fourier coefficient (range) (Fourier coefficient (range)) int64 88B -5 ...
* Fourier coefficient (source) (Fourier coefficient (source)) int64 88B -5...,
source=XarrayVectorSpace(coord_data={Fourier coefficient: (array([-5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5]),)}),
range=XarrayVectorSpace(coord_data={Fourier coefficient: (array([-5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5]),)})),
XarrayMatrixOperator(
<xarray.DataArray (dof (range): 2, dof (source): 2)> Size: 32B
array([[0., 0.],
[0., 1.]])
Coordinates:
* dof (range) (dof (range)) <U1 8B 'x' 'v'
* dof (source) (dof (source)) <U1 8B 'x' 'v',
source=XarrayVectorSpace(coord_data={dof: (array(['x', 'v'], dtype='<U1'), {'long_name': 'Degrees of freedom'})}),
range=XarrayVectorSpace(coord_data={dof: (array(['x', 'v'], dtype='<U1'), {'long_name': 'Degrees of freedom'})}))])),
'coefficients': (1.0, 1.0, 1.0, 1.0),
'solver': None,
'_name': 'LincombOperator',
'source': XarrayVectorSpace(
coord_data={Fourier coefficient: (array([-5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5]),),
dof: (array(['x', 'v'], dtype='<U1'), {'long_name': 'Degrees of freedom'})}),
'range': XarrayVectorSpace(
coord_data={Fourier coefficient: (array([-5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5]),),
dof: (array(['x', 'v'], dtype='<U1'), {'long_name': 'Degrees of freedom'})}),
'linear': True,
'_locked': True}floquet_sol = floquet.solve(dict(nu=1.))
floquet_sol∅ ⛒ Fourier coefficient(11) ⛒ dof(2)
<xarray.DataArray (Fourier coefficient: 11, dof: 2)> Size: 352B
array([[ 0.+0.j, 0.+0.j],
[ 0.+0.j, 0.+0.j],
[ 0.+0.j, 0.+0.j],
[ 0.+0.j, 0.+0.j],
[ 0.+0.j, 0.+0.j],
[ 0.+0.j, -0.-0.j],
[-0.+0.j, -0.+0.j],
[-0.+0.j, -0.+0.j],
[-0.+0.j, -0.+0.j],
[-0.+0.j, -0.+0.j],
[-0.+0.j, -0.+0.j]])
Coordinates:
* Fourier coefficient (Fourier coefficient) int64 88B -5 -4 -3 -2 ... 2 3 4 5
* dof (dof) <U1 8B 'x' 'v'import plotly.graph_objects as gofig1 = floquet.reconstruct(floquet_sol, dict(c=.1, nu=1.)).real.visualize()
fig2 = instationary_sol.visualize()
go.Figure(data=fig1.data + fig2.data).update_layout(xaxis_range=(0, 200))Unable to display output for mime type(s): application/vnd.plotly.v1+json# #|export
# def independent_component(op:LincombOperator, mu:dict):
# return sum(term for term in operator.terms if not set(mu).intersection(term.parameters))
# #|export
# def dependent_component(op:LincombOperator, mu:dict):
# return sum(term for term in operator.terms if set(mu).intersection(term.parameters))
# #| export
# def fourier_coefficients(expr:ExpressionParameterFunctional, n:int, mu:dict=None, t:str='t', nu:str='nu') -> np.ndarray:
# """Coefficients of complex Fourier series of expr in variable `t` at frequency `nu`."""
# if isinstance(expr, ExpressionParameterFunctional): expr = expr.expression
# expr = parse_expr(expr)
# if mu is not None: expr = expr.subs(mu)
# t = sy.Symbol(t)
# series = sy.fourier_series(expr.subs(nu, 1), (t, -sy.pi, sy.pi)).truncate(n=n+1).rewrite(sy.exp).expand()
# return array([series.coeff(sy.exp(sy.I*t), n=k) if k != 0 else series.coeff(t, n=0) for k in range(-n, n+1)]).astype(complex)
# #| export
# def fourier_range_coord(n): return first(Coordinates({'Fourier coefficient (range)': sym_range(n)}).values())
# def fourier_source_coord(n): return first(Coordinates({'Fourier coefficient': sym_range(n)}).values())
# def fourier_operator_coords(n): return (fourier_range_coord(n) * fourier_source_coord(n)).coords
# def fourier_range_space(n): return XarrayVectorSpace(fourier_range_coord(n))
# def fourier_source_space(n): return XarrayVectorSpace(fourier_source_coord(n))
# #| export
# def fourier_expansion_operator(coefficient, n_operator, n_vector, mu=None, t:str='t', nu:str='nu'):
# return XarrayMatrixOperator(
# DataArray(
# sparse_toeplitz(np.pad(fourier_coefficients(coefficient, n=n_operator, mu=mu), n_vector + 1)),
# coords=fourier_operator_coords(n_vector)
# )
# )
# #| export
# def fourier_identity_operator(n_vector):
# return XarrayMatrixOperator(
# DataArray(
# sparse_identity(2*n_vector+1),
# coords=fourier_operator_coords(n_vector)
# )
# )
# #| export
# def fourier_diagonal_operator(vec):
# return XarrayMatrixOperator(
# DataArray(
# sparse_diag(vec),
# coords=fourier_operator_coords((len(vec)-1)//2)
# )
# )
# #| export
# def dm_identity_operator(lgs):
# return XarrayMatrixOperator(DataArray(sparse_identity(lgs.n_variables), lgs.A_ind.operators[0].matrix.coords))
# #| export
# def dm_identity_operator(lgs):
# return XarrayMatrixOperator(DataArray(sparse_identity(lgs.n_variables), lgs.A_ind.operators[0].matrix.coords))
# #| export
# def _da_identity(range_coord, source_coord):
# return DataArray(sparse_identity(len(source_coord)), coords=((range_coord.name, range_coord.data), (source_coord.name, source_coord.data)))
# #| export
# import math
# #| export
# def _identity_operator(range, source):
# return math.prod(XarrayMatrixOperator(_da_identity(r, s)) for r, s in zip(range.coords.values(), source.coords.values()))
# #| export
# def _kron_vector(space): return space.from_numpy((sym_range((space.dim - 1)//2) == 0).astype(int))
# #| export
# def _time_coord(time): return first(Coordinates({'Time': time}).values())
# def _time_space(time): return XarrayVectorSpace(_time_coord(time))
# #| export
# def _floquet_reconstruction_array(n_vector, time, mu):
# return np.exp(
# 1j * ExpressionParameterFunctional('nu', {'nu': 1}).evaluate(mu)
# * _time_coord(time)
# * fourier_source_coord(n_vector)
# )
# #| export
# def floquet_reconstruction(n_vector, time):
# return XarrayFunctionalOperator(
# GenericParameterFunctional(lambda mu: _floquet_reconstruction_array(n_vector, time, mu), {'nu': 1}),
# range=_time_space(time),
# source=fourier_source_space(n_vector),
# )
# #|export
# class StationaryFloquetModel(StationaryModel):
# """A model that solves for the Fourier coefficients of the periodic state of a modulated system."""
# def __init__(
# self,
# operator, # System evolution operator
# rhs, # System right-hand side vector
# mu, # Parameter specification for parameters modulated at a frequency `nu`
# n_vector, # Number of terms in the system Fourier series
# nu='nu', # Name of the frequency variable
# n_operator=None, # Number of terms in the operator Fourier series. `None` defaults to `n_vector` - 1
# products=None,
# name=None,
# data=None
# ):
# if n_operator is None: n_operator = n_vector - 1
# operator = expand(operator)
# A = independent_component(operator, mu)
# B = dependent_component(operator, mu)
# B = simplify_functionals(B)
# B_expanded = sum(fourier_expansion_operator(c, n_operator, n_vector, mu=mu) * o for c, o in zip(B.coefficients, B.operators))
# A_expanded = fourier_identity_operator(n_vector) * A
# D_expanded = (
# ExpressionParameterFunctional(f'-(1j)*{nu}', {nu: 1})
# * (fourier_diagonal_operator(sym_range(n_vector))
# * IdentityOperator(operator.source)
# )
# )
# operator_expanded = (D_expanded + A_expanded + B_expanded).with_(solver_options=operator.solver_options)
# rhs_expanded = _kron_vector(fourier_range_space(n_vector)) * rhs
# self.mu, self.n_vector, self.nu, self.n_operator = mu, n_vector, nu, n_operator
# super().__init__(
# operator_expanded,
# rhs_expanded,
# products=products,
# data=data
# )
