pymor.vectorarrays

Extended functionality for pyMOR vector arrays

---

Lbl

def Lbl(
    args:VAR_POSITIONAL, kwds:VAR_KEYWORD
):

Enum where members are also (and must be) strings

---

unlabel_dims

def unlabel_dims(
    obj
):

from sparse import COO, GCXS, SparseArray

XarrayVectorSpace

---

dataarray_coordinate_data

def dataarray_coordinate_data(
    da:DataArray, dim:str
)->tuple:

---

default_coordinate

def default_coordinate(
    dim:str='len', size:int | list[int] | tuple[int] | None=None
)->tuple:

da = DataArray(np.ones([1,2,3]), dims=['A', 'B', 'C'], coords={'A': ('A', [0]), 'C': ('C', [0, 1, 2])})

[dataarray_coordinate_data(da, dim) for dim in ['A', 'B', 'C']]

[(array([0]), {}), (array([0, 1]),), (array([0, 1, 2]), {})]

_

[(array([0]), {}), (array([0, 1]),), (array([0, 1, 2]), {})]

---

____

def ____(
    obj:None, shape:NoneType=None
):

---

____

def ____(
    obj:None, shape:NoneType=None
):

---

____

def ____(
    obj:None, shape:NoneType=None
):

---

____

def ____(
    obj:None, shape:NoneType=None
):

---

____

def ____(
    obj:None, shape:NoneType=None
):

---

____

def ____(
    obj:None, shape:NoneType=None
):

---

____

def ____(
    obj:None, shape:NoneType=None
):

---

validate_coord_data

def validate_coord_data(
    obj, shape:NoneType=None
)->dict:

validate_coord_data(da)

{'A': (array([0]), {}), 'B': (array([0, 1]),), 'C': (array([0, 1, 2]), {})}

validate_coord_data(da.coords)

{'A': (array([0]), {}), 'C': (array([0, 1, 2]), {})}

validate_coord_data({'A': (array([0]), {}), 'C': array([0, 1, 2])})

{'A': (array([0]), {}), 'C': (array([0, 1, 2]),)}

validate_coord_data('A')

{'A': (['A'],)}

validate_coord_data('A', 3)

{'A': (array([0, 1, 2]),)}

validate_coord_data(['A', 'B'], [3, 0])

{'A': (array([0, 1, 2]),), 'B': (['B'],)}

validate_coord_data(3)

{3: (array([0, 1, 2]),)}

validate_coord_data(None)

{}

---

coord_data_shape

def coord_data_shape(
    coord_data
):

---

make_coordinates

def make_coordinates(
    coord_data:dict
)->Coordinates:

---

XarrayVectorSpace

def XarrayVectorSpace(
    coord_data:xarray.core.coordinates.Coordinates | dict | xarray.core.dataarray.DataArray | str | None=None,
    name:str | None=None, attrs:dict | None=None,
    id:NoneType=None, # See `~pymor.vectorarrays.interface.VectorSpace.id`.
):

VectorSpace of XarrayVectorArrays.

“Empty” XarrayVectorSpace with no coordinates (used, for example, for operators whose range is a scalar):

space1 = XarrayVectorSpace()
space1

<xarray.DataArray 'XarrayVectorSpace' ()> Size: 8B
array(0.)

xarray.DataArray

'XarrayVectorSpace'

• 0.0

  array(0.)

XarrayVectorSpace from dictionary of coordinates:

coords = {'A': [1, 2, 3]}
space1 = XarrayVectorSpace(coords)
space1

A(3)

<xarray.DataArray 'XarrayVectorSpace' (A: 3)> Size: 24B
array([0., 0., 0.])
Coordinates:
  * A        (A) int64 24B 1 2 3

xarray.DataArray

'XarrayVectorSpace'

• A: 3

• 0.0 0.0 0.0

  array([0., 0., 0.])

• Coordinates: (1)
  • A
    (A)
    int64
    1 2 3

    array([1, 2, 3])

The DataArray is created lazily:

vars(space1)

{'coord_data': {'A': ([1, 2, 3],)},
 '_name': None,
 'attrs': None,
 'id': None,
 'dims': ['A'],
 'ndim': 1,
 'shape': [3],
 'size': 3,
 '_locked': True,
 '_array': <xarray.DataArray 'XarrayVectorSpace' (A: 3)> Size: 24B
 array([0., 0., 0.])
 Coordinates:
   * A        (A) int64 24B 1 2 3}

space1.coords

Coordinates:
  * A        (A) int64 24B 1 2 3

vars(space1)

{'coord_data': {'A': ([1, 2, 3],)},
 '_name': None,
 'attrs': None,
 'id': None,
 'dims': ['A'],
 'ndim': 1,
 'shape': [3],
 'size': 3,
 '_locked': True,
 '_array': <xarray.DataArray 'XarrayVectorSpace' (A: 3)> Size: 24B
 array([0., 0., 0.])
 Coordinates:
   * A        (A) int64 24B 1 2 3,
 'coords': Coordinates:
   * A        (A) int64 24B 1 2 3}

coords = {'A': [1, 2, 3], 'B': ['a', 'b']}
space2 = XarrayVectorSpace(coords)
space2

A(3) ⛒ B(2)

<xarray.DataArray 'XarrayVectorSpace' (A: 3, B: 2)> Size: 48B
array([[0., 0.],
       [0., 0.],
       [0., 0.]])
Coordinates:
  * A        (A) int64 24B 1 2 3
  * B        (B) <U1 8B 'a' 'b'

xarray.DataArray

'XarrayVectorSpace'

• A: 3
• B: 2

• 0.0 0.0 0.0 0.0 0.0 0.0

  array([[0., 0.],
         [0., 0.],
         [0., 0.]])

• Coordinates: (2)
  • A
    (A)
    int64
    1 2 3

    array([1, 2, 3])

  • B
    (B)
    <U1
    'a' 'b'

    array(['a', 'b'], dtype='<U1')

From a list of coordinates with attributes:

coords = {'A': ([1, 2, 3], {'short_name': 'a'}), 'B': (['a', 'b'], {'short_name': 'b'})}
XarrayVectorSpace(coords)

A(3) ⛒ B(2)

<xarray.DataArray 'XarrayVectorSpace' (A: 3, B: 2)> Size: 48B
array([[0., 0.],
       [0., 0.],
       [0., 0.]])
Coordinates:
  * A        (A) int64 24B 1 2 3
  * B        (B) <U1 8B 'a' 'b'

xarray.DataArray

'XarrayVectorSpace'

• A: 3
• B: 2

• 0.0 0.0 0.0 0.0 0.0 0.0

  array([[0., 0.],
         [0., 0.],
         [0., 0.]])

• Coordinates: (2)
  • A
    (A)
    int64
    1 2 3

    short_name :

    a

    array([1, 2, 3])

  • B
    (B)
    <U1
    'a' 'b'

    short_name :

    b

    array(['a', 'b'], dtype='<U1')

From xarray Coordinates:

coords

{'A': ([1, 2, 3], {'short_name': 'a'}), 'B': (['a', 'b'], {'short_name': 'b'})}

coords = make_coordinates(coords)
XarrayVectorSpace(coords)

A(3) ⛒ B(2)

<xarray.DataArray 'XarrayVectorSpace' (A: 3, B: 2)> Size: 48B
array([[0., 0.],
       [0., 0.],
       [0., 0.]])
Coordinates:
  * A        (A) int64 24B 1 2 3
  * B        (B) <U1 8B 'a' 'b'

xarray.DataArray

'XarrayVectorSpace'

• A: 3
• B: 2

• 0.0 0.0 0.0 0.0 0.0 0.0

  array([[0., 0.],
         [0., 0.],
         [0., 0.]])

• Coordinates: (2)
  • A
    (A)
    int64
    1 2 3

    short_name :

    a

    array([1, 2, 3])

  • B
    (B)
    <U1
    'a' 'b'

    short_name :

    b

    array(['a', 'b'], dtype='<U1')

From DataArray:

da = DataArray(np.ones(coords.shape), coords=coords, name='C')
space = XarrayVectorSpace(da)
space

A(3) ⛒ B(2)

<xarray.DataArray 'C' (A: 3, B: 2)> Size: 48B
array([[0., 0.],
       [0., 0.],
       [0., 0.]])
Coordinates:
  * A        (A) int64 24B 1 2 3
  * B        (B) <U1 8B 'a' 'b'

xarray.DataArray

'C'

• A: 3
• B: 2

• 0.0 0.0 0.0 0.0 0.0 0.0

  array([[0., 0.],
         [0., 0.],
         [0., 0.]])

• Coordinates: (2)
  • A
    (A)
    int64
    1 2 3

    short_name :

    a

    array([1, 2, 3])

  • B
    (B)
    <U1
    'a' 'b'

    short_name :

    b

    array(['a', 'b'], dtype='<U1')

space.dim

6

space.ndim

2

---

XarrayVectorSpace.rename

def rename(
    name
):

space = XarrayVectorSpace({'A': [1, 2], 'B': ['a', 'b', 'c']}, name='boo')
space

A(2) ⛒ B(3)

<xarray.DataArray 'boo' (A: 2, B: 3)> Size: 48B
array([[0., 0., 0.],
       [0., 0., 0.]])
Coordinates:
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'

xarray.DataArray

'boo'

• A: 2
• B: 3

• 0.0 0.0 0.0 0.0 0.0 0.0

  array([[0., 0., 0.],
         [0., 0., 0.]])

• Coordinates: (2)
  • A
    (A)
    int64
    1 2

    array([1, 2])

  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

space.name

'boo'

space.rename('foo').name

'foo'

---

XarrayVectorSpace.__eq__

def __eq__(
    other
):

Return self==value.

space == space

True

space == space.rename('foo')

True

---

XarrayVectorSpace.__mul__

def __mul__(
    other
):

space2 = XarrayVectorSpace({'C': [1, 2], 'D': ['a', 'b', 'c']}, name='foo')

space3 = space * space2
space3

A(2) ⛒ B(3) ⛒ C(2) ⛒ D(3)

<xarray.DataArray 'foo' (A: 2, B: 3, C: 2, D: 3)> Size: 288B
array([[[[0., 0., 0.],
         [0., 0., 0.]],

        [[0., 0., 0.],
         [0., 0., 0.]],

        [[0., 0., 0.],
         [0., 0., 0.]]],


       [[[0., 0., 0.],
         [0., 0., 0.]],

        [[0., 0., 0.],
         [0., 0., 0.]],

        [[0., 0., 0.],
         [0., 0., 0.]]]])
Coordinates:
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'
  * C        (C) int64 16B 1 2
  * D        (D) <U1 12B 'a' 'b' 'c'

xarray.DataArray

'foo'

• A: 2
• B: 3
• C: 2
• D: 3

• 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 ... 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0

  array([[[[0., 0., 0.],
           [0., 0., 0.]],

          [[0., 0., 0.],
           [0., 0., 0.]],

          [[0., 0., 0.],
           [0., 0., 0.]]],


         [[[0., 0., 0.],
           [0., 0., 0.]],

          [[0., 0., 0.],
           [0., 0., 0.]],

          [[0., 0., 0.],
           [0., 0., 0.]]]])

• Coordinates: (4)
  • A
    (A)
    int64
    1 2

    array([1, 2])

  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

  • C
    (C)
    int64
    1 2

    array([1, 2])

  • D
    (D)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

space3 == XarrayVectorSpace(space.coords + space2.coords)

True

space3.name

'foo'

space2 * space2 == space2

True

XarrayVectorArray

---

transpose_like

def transpose_like(
    a:ndarray, dims, new_dims
):

impl = XarrayVectorArrayImpl(
    np.arange(6).reshape(2, 3, 1),
    space,
    ['A', 'B', 'C'],
    {"C": [0]}
)
impl

XarrayVectorArrayImpl(
    array([[[0, 1, 2], [3, 4, 5]]]),
    XarrayVectorSpace(coord_data={A: ([1, 2],), B: (['a', 'b', 'c'],)}, name='boo'),
    _data_dims=['C', 'A', 'B'],
    _extended_coord_data={C: ([0],)})

len(impl)

1

impl.array

<xarray.DataArray (C: 1, A: 2, B: 3)> Size: 48B
array([[[0, 1, 2],
        [3, 4, 5]]])
Coordinates:
  * C        (C) int64 8B 0
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'

xarray.DataArray

• C: 1
• A: 2
• B: 3

• 0 1 2 3 4 5

  array([[[0, 1, 2],
          [3, 4, 5]]])

• Coordinates: (3)
  • C
    (C)
    int64
    0

    array([0])

  • A
    (A)
    int64
    1 2

    array([1, 2])

  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

# #|export
# #|hide
# def _abbreviate(s):
#     s = s.split('(')[0]
#     words = s.split()
#     if len(words) > 1: return ''.join(w[0].capitalize() for w in words)
#     return s[:2]

# #|export
# #|hide
# def _coords_str(coords, dims=None):
#     if not coords: return '{1}'
#     if dims is None: dims = list(coords)
#     return '{' + ' ⨉ '.join(f'{dim}({len(coords[dim])})' for dim in dims) + '}'

# #|export
# def _short_coords_str(coords, dims=None):
#     if not coords: return '{1}'
#     if dims is None: dims = list(coords)
#     return '{' + ' ⨉ '.join(f'{_abbreviate(dim)}({len(coords[dim])})' for dim in dims) + '}'

U = XarrayVectorArray(space, impl)
U

C(1) ⛒ A(2) ⛒ B(3)

<xarray.DataArray (C: 1, A: 2, B: 3)> Size: 48B
array([[[0, 1, 2],
        [3, 4, 5]]])
Coordinates:
  * C        (C) int64 8B 0
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'

xarray.DataArray

• C: 1
• A: 2
• B: 3

• 0 1 2 3 4 5

  array([[[0, 1, 2],
          [3, 4, 5]]])

• Coordinates: (3)
  • C
    (C)
    int64
    0

    array([0])

  • A
    (A)
    int64
    1 2

    array([1, 2])

  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

U.data

array([[[0, 1, 2],
        [3, 4, 5]]])

U.array

<xarray.DataArray (C: 1, A: 2, B: 3)> Size: 48B
array([[[0, 1, 2],
        [3, 4, 5]]])
Coordinates:
  * C        (C) int64 8B 0
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'

xarray.DataArray

• C: 1
• A: 2
• B: 3

• 0 1 2 3 4 5

  array([[[0, 1, 2],
          [3, 4, 5]]])

• Coordinates: (3)
  • C
    (C)
    int64
    0

    array([0])

  • A
    (A)
    int64
    1 2

    array([1, 2])

  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

U.shape

(1, 2, 3)

U.coords

Coordinates:
  * C        (C) int64 8B 0
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'

U.dims

['A', 'B']

U.extended_dims

['C']

U.extended_coord_data

{'C': ([0],)}

---

XarrayVectorSpace.from_data

def from_data(
    data, data_dims:NoneType=None, extended_coord_data:NoneType=None
):

Create a VectorArray with an extended dimension:

U = space.from_data(
    np.arange(6).reshape(2, 3, 1),
    ['A', 'B', 'C'],
    {"C": [0]}
)
U

C(1) ⛒ A(2) ⛒ B(3)

<xarray.DataArray (C: 1, A: 2, B: 3)> Size: 48B
array([[[0, 1, 2],
        [3, 4, 5]]])
Coordinates:
  * C        (C) int64 8B 0
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'

xarray.DataArray

• C: 1
• A: 2
• B: 3

• 0 1 2 3 4 5

  array([[[0, 1, 2],
          [3, 4, 5]]])

• Coordinates: (3)
  • C
    (C)
    int64
    0

    array([0])

  • A
    (A)
    int64
    1 2

    array([1, 2])

  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

U.data

array([[[0, 1, 2],
        [3, 4, 5]]])

U.array

<xarray.DataArray (C: 1, A: 2, B: 3)> Size: 48B
array([[[0, 1, 2],
        [3, 4, 5]]])
Coordinates:
  * C        (C) int64 8B 0
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'

xarray.DataArray

• C: 1
• A: 2
• B: 3

• 0 1 2 3 4 5

  array([[[0, 1, 2],
          [3, 4, 5]]])

• Coordinates: (3)
  • C
    (C)
    int64
    0

    array([0])

  • A
    (A)
    int64
    1 2

    array([1, 2])

  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

U.shape

(1, 2, 3)

U.coords

Coordinates:
  * C        (C) int64 8B 0
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'

U.dims

['A', 'B']

U.extended_dims

['C']

U.extended_coord_data

{'C': ([0],)}

Create a VectorArray with no extended dimension:

U = space.from_data(
    np.arange(6).reshape(2, 3),
    ['A', 'B'],
)
U

∅ ⛒ A(2) ⛒ B(3)

<xarray.DataArray (A: 2, B: 3)> Size: 48B
array([[0, 1, 2],
       [3, 4, 5]])
Coordinates:
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'

xarray.DataArray

• A: 2
• B: 3

• 0 1 2 3 4 5

  array([[0, 1, 2],
         [3, 4, 5]])

• Coordinates: (2)
  • A
    (A)
    int64
    1 2

    array([1, 2])

  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

U.data

array([[0, 1, 2],
       [3, 4, 5]])

U.array

<xarray.DataArray (A: 2, B: 3)> Size: 48B
array([[0, 1, 2],
       [3, 4, 5]])
Coordinates:
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'

xarray.DataArray

• A: 2
• B: 3

• 0 1 2 3 4 5

  array([[0, 1, 2],
         [3, 4, 5]])

• Coordinates: (2)
  • A
    (A)
    int64
    1 2

    array([1, 2])

  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

U.shape

(2, 3)

U.coords

Coordinates:
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'

U.dims

['A', 'B']

U.extended_dims

[]

U.extended_coord_data

{}

---

XarrayVectorSpace.from_numpy

def from_numpy(
    data:ndarray, extended_coord_data:dict | str | None=None, id:NoneType=None, ensure_copy:bool=False
)->XarrayVectorArray: # A vector array with data from the numpy array

Return an XarrayVectorArray in the vector space with data from the ndarray data.

space.from_numpy(np.arange(6))

∅ ⛒ A(2) ⛒ B(3)

<xarray.DataArray (A: 2, B: 3)> Size: 48B
array([[0, 1, 2],
       [3, 4, 5]])
Coordinates:
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'

xarray.DataArray

• A: 2
• B: 3

• 0 1 2 3 4 5

  array([[0, 1, 2],
         [3, 4, 5]])

• Coordinates: (2)
  • A
    (A)
    int64
    1 2

    array([1, 2])

  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

space.from_numpy(np.arange(6), {"C": [0]})

C(1) ⛒ A(2) ⛒ B(3)

<xarray.DataArray (C: 1, A: 2, B: 3)> Size: 48B
array([[[0, 1, 2],
        [3, 4, 5]]])
Coordinates:
  * C        (C) int64 8B 0
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'

xarray.DataArray

• C: 1
• A: 2
• B: 3

• 0 1 2 3 4 5

  array([[[0, 1, 2],
          [3, 4, 5]]])

• Coordinates: (3)
  • C
    (C)
    int64
    0

    array([0])

  • A
    (A)
    int64
    1 2

    array([1, 2])

  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

---

XarrayVectorSpace.from_xarray

def from_xarray(
    data:DataArray
)->XarrayVectorArray:

Return an XarrayVectorArray containing data from DataArray data.

da = space.from_numpy(np.arange(6)).array
da

<xarray.DataArray (A: 2, B: 3)> Size: 48B
array([[0, 1, 2],
       [3, 4, 5]])
Coordinates:
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'

xarray.DataArray

• A: 2
• B: 3

• 0 1 2 3 4 5

  array([[0, 1, 2],
         [3, 4, 5]])

• Coordinates: (2)
  • A
    (A)
    int64
    1 2

    array([1, 2])

  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

space.from_xarray(da)

∅ ⛒ A(2) ⛒ B(3)

<xarray.DataArray (A: 2, B: 3)> Size: 48B
array([[0, 1, 2],
       [3, 4, 5]])
Coordinates:
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'

xarray.DataArray

• A: 2
• B: 3

• 0 1 2 3 4 5

  array([[0, 1, 2],
         [3, 4, 5]])

• Coordinates: (2)
  • A
    (A)
    int64
    1 2

    array([1, 2])

  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

An XarrayVectorArray from an array in space plus extended dimensions:

da = da * DataArray([1], coords={'C': [0]})
da

<xarray.DataArray (A: 2, B: 3, C: 1)> Size: 48B
array([[[0],
        [1],
        [2]],

       [[3],
        [4],
        [5]]])
Coordinates:
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'
  * C        (C) int64 8B 0

xarray.DataArray

• A: 2
• B: 3
• C: 1

• 0 1 2 3 4 5

  array([[[0],
          [1],
          [2]],

         [[3],
          [4],
          [5]]])

• Coordinates: (3)
  • A
    (A)
    int64
    1 2

    array([1, 2])

  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

  • C
    (C)
    int64
    0

    array([0])

space.from_xarray(da)

C(1) ⛒ A(2) ⛒ B(3)

<xarray.DataArray (C: 1, A: 2, B: 3)> Size: 48B
array([[[0, 1, 2],
        [3, 4, 5]]])
Coordinates:
  * C        (C) int64 8B 0
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'

xarray.DataArray

• C: 1
• A: 2
• B: 3

• 0 1 2 3 4 5

  array([[[0, 1, 2],
          [3, 4, 5]]])

• Coordinates: (3)
  • C
    (C)
    int64
    0

    array([0])

  • A
    (A)
    int64
    1 2

    array([1, 2])

  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

---

XarrayVectorSpace.concatenate

def concatenate(
    arrays, dim
):

---

XarrayVectorSpace.array_from_fn

def array_from_fn(
    fn, extended_coords:dict | str | None=None, # Coordinates to extend vector space over
    reserve:int=0
)->XarrayVectorArray: # `XarrayVectorArray` with all elements equal to zero

Return XarrayVectorArray of null vectors in XarrayVectorSpace optionally extended to include supplied coordinates coords.

---

XarrayVectorSpace.zeros

def zeros(
    extended_coords:dict | None=None, # Coordinates to extend vector space over
    reserve:int=0
)->XarrayVectorArray: # `XarrayVectorArray` with all elements equal to zero

Return XarrayVectorArray of null vectors in XarrayVectorSpace optionally extended to include supplied coordinates coords.

space.zeros()

∅ ⛒ A(2) ⛒ B(3)

<xarray.DataArray (A: 2, B: 3)> Size: 48B
array([[0., 0., 0.],
       [0., 0., 0.]])
Coordinates:
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'

xarray.DataArray

• A: 2
• B: 3

• 0.0 0.0 0.0 0.0 0.0 0.0

  array([[0., 0., 0.],
         [0., 0., 0.]])

• Coordinates: (2)
  • A
    (A)
    int64
    1 2

    array([1, 2])

  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

space.zeros({'C': [0]})

C(1) ⛒ A(2) ⛒ B(3)

<xarray.DataArray (C: 1, A: 2, B: 3)> Size: 48B
array([[[0., 0., 0.],
        [0., 0., 0.]]])
Coordinates:
  * C        (C) int64 8B 0
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'

xarray.DataArray

• C: 1
• A: 2
• B: 3

• 0.0 0.0 0.0 0.0 0.0 0.0

  array([[[0., 0., 0.],
          [0., 0., 0.]]])

• Coordinates: (3)
  • C
    (C)
    int64
    0

    array([0])

  • A
    (A)
    int64
    1 2

    array([1, 2])

  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

---

XarrayVectorSpace.ones

def ones(
    extended_coords:dict | None=None, # Coordinates to extend vector space over
    reserve:int=0
)->XarrayVectorArray: # `XarrayVectorArray` with all elements equal to one

Return XarrayVectorArray of vectors with each element equal to one in XarrayVectorSpace optionally extended to include supplied coordinates coords.

space.ones()

∅ ⛒ A(2) ⛒ B(3)

<xarray.DataArray (A: 2, B: 3)> Size: 48B
array([[1., 1., 1.],
       [1., 1., 1.]])
Coordinates:
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'

xarray.DataArray

• A: 2
• B: 3

• 1.0 1.0 1.0 1.0 1.0 1.0

  array([[1., 1., 1.],
         [1., 1., 1.]])

• Coordinates: (2)
  • A
    (A)
    int64
    1 2

    array([1, 2])

  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

space.ones({'C': [0]})

C(1) ⛒ A(2) ⛒ B(3)

<xarray.DataArray (C: 1, A: 2, B: 3)> Size: 48B
array([[[1., 1., 1.],
        [1., 1., 1.]]])
Coordinates:
  * C        (C) int64 8B 0
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'

xarray.DataArray

• C: 1
• A: 2
• B: 3

• 1.0 1.0 1.0 1.0 1.0 1.0

  array([[[1., 1., 1.],
          [1., 1., 1.]]])

• Coordinates: (3)
  • C
    (C)
    int64
    0

    array([0])

  • A
    (A)
    int64
    1 2

    array([1, 2])

  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

---

XarrayVectorSpace.random

def random(
    extended_coords:NoneType=None,
    distribution:str='uniform', # Random distribution to use (`'uniform'`, `'normal'`).
    name:NoneType=None
)->XarrayVectorArray: # A random `XarrayVectorArray` in the vector space

Create a |VectorArray| of vectors with random entries.

Supported random distributions::

'uniform': Uniform distribution in half-open interval
           [`low`, `high`).
'normal':  Normal (Gaussian) distribution with mean
           `loc` and standard deviation `scale`.

Note that not all random distributions are necessarily implemented by all |VectorSpace| implementations.

from pymor.tools.random import new_rng

with new_rng(42):
    U = space.random()
U

∅ ⛒ A(2) ⛒ B(3)

<xarray.DataArray (A: 2, B: 3)> Size: 48B
array([[0.77395605, 0.85859792, 0.09417735],
       [0.43887844, 0.69736803, 0.97562235]])
Coordinates:
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'

xarray.DataArray

• A: 2
• B: 3

• 0.774 0.8586 0.09418 0.4389 0.6974 0.9756

  array([[0.77395605, 0.85859792, 0.09417735],
         [0.43887844, 0.69736803, 0.97562235]])

• Coordinates: (2)
  • A
    (A)
    int64
    1 2

    array([1, 2])

  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

with new_rng(42):
    U = space.random({'C': [0]})
U

C(1) ⛒ A(2) ⛒ B(3)

<xarray.DataArray (C: 1, A: 2, B: 3)> Size: 48B
array([[[0.77395605, 0.85859792, 0.09417735],
        [0.43887844, 0.69736803, 0.97562235]]])
Coordinates:
  * C        (C) int64 8B 0
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'

xarray.DataArray

• C: 1
• A: 2
• B: 3

• 0.774 0.8586 0.09418 0.4389 0.6974 0.9756

  array([[[0.77395605, 0.85859792, 0.09417735],
          [0.43887844, 0.69736803, 0.97562235]]])

• Coordinates: (3)
  • C
    (C)
    int64
    0

    array([0])

  • A
    (A)
    int64
    1 2

    array([1, 2])

  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

---

XarrayVectorSpace.__contains__

def __contains__(
    other
):

space in space2

False

space in space

True

U = space.zeros({'C': range(2)})
U

C(2) ⛒ A(2) ⛒ B(3)

<xarray.DataArray (C: 2, A: 2, B: 3)> Size: 96B
array([[[0., 0., 0.],
        [0., 0., 0.]],

       [[0., 0., 0.],
        [0., 0., 0.]]])
Coordinates:
  * C        (C) int64 16B 0 1
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'

xarray.DataArray

• C: 2
• A: 2
• B: 3

• 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0

  array([[[0., 0., 0.],
          [0., 0., 0.]],

         [[0., 0., 0.],
          [0., 0., 0.]]])

• Coordinates: (3)
  • C
    (C)
    int64
    0 1

    array([0, 1])

  • A
    (A)
    int64
    1 2

    array([1, 2])

  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

U in space

True

---

XarrayVectorArray.array_labeled_as_source

def array_labeled_as_source(

):

U.array_labeled_as_source()

<xarray.DataArray (C: 2, A (source): 2, B (source): 3)> Size: 96B
array([[[0., 0., 0.],
        [0., 0., 0.]],

       [[0., 0., 0.],
        [0., 0., 0.]]])
Coordinates:
  * C           (C) int64 16B 0 1
  * A (source)  (A (source)) int64 16B 1 2
  * B (source)  (B (source)) <U1 12B 'a' 'b' 'c'

xarray.DataArray

• C: 2
• A (source): 2
• B (source): 3

• 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0

  array([[[0., 0., 0.],
          [0., 0., 0.]],

         [[0., 0., 0.],
          [0., 0., 0.]]])

• Coordinates: (3)
  • C
    (C)
    int64
    0 1

    array([0, 1])

  • A (source)
    (A (source))
    int64
    1 2

    array([1, 2])

  • B (source)
    (B (source))
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

---

XarrayVectorArray.item

def item(

):

Return the single value stored in the array if there is only one value.

XarrayVectorSpace({'i': [0]}).ones().item()

1.0

# #|export
# @patch(as_prop=True)
# def dims(self:XarrayVectorArray): return self.array.dims

# #|export
# @patch
# def stacked_data(self:XarrayVectorArray):
#     return transpose_like(
#         self.data, self.array.dims, self.dims + self.extended_dims
#     ).reshape(
#         self.space.size, *(self.extended_shape or [1])
#     )

---

XarrayVectorArrayImpl.stacked_data

def stacked_data(

):

U

C(2) ⛒ A(2) ⛒ B(3)

<xarray.DataArray (C: 2, A: 2, B: 3)> Size: 96B
array([[[0., 0., 0.],
        [0., 0., 0.]],

       [[0., 0., 0.],
        [0., 0., 0.]]])
Coordinates:
  * C        (C) int64 16B 0 1
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'

xarray.DataArray

• C: 2
• A: 2
• B: 3

• 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0

  array([[[0., 0., 0.],
          [0., 0., 0.]],

         [[0., 0., 0.],
          [0., 0., 0.]]])

• Coordinates: (3)
  • C
    (C)
    int64
    0 1

    array([0, 1])

  • A
    (A)
    int64
    1 2

    array([1, 2])

  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

U = space.zeros({'C': np.arange(2), 'D': np.arange(2)})
U.impl.stacked_data().shape

(6, 4)

U = space.zeros()
U.impl.stacked_data()

array([[0.],
       [0.],
       [0.],
       [0.],
       [0.],
       [0.]])

U = space.zeros({'C': range(2)})
U.impl.stacked_data()

array([[0., 0.],
       [0., 0.],
       [0., 0.],
       [0., 0.],
       [0., 0.],
       [0., 0.]])

---

VectorArray.to_numpy

def to_numpy(
    ensure_copy:bool=False, # If `False`, modifying the returned |NumPy array| might alter the original
|VectorArray|. If `True` always a copy of the array data is made.
):

Return (self.dim, len(self)) NumPy Array with the data stored in the array.

U.to_numpy().shape

(6, 2)

This gives the same result as for a dimension-6 NumpyVectorSpace:

NumpyVectorSpace(6).zeros(2).to_numpy().shape

(6, 2)

space.zeros(space2.coords).shape

(2, 3, 2, 3)

space.zeros(space2.coords).to_numpy().shape

(6, 6)

# #|export
# @patch
# def rename(
#     self:XarrayVectorArray,
#     new_name_or_name_dict=None,
#     **names,
# ):
#     """Rename the vector array and/or any of its dimensions."""
#     vec = self.space.rename(new_name_or_name_dict, **names).from_xarray(self.array.rename(new_name_or_name_dict, **names))
#     if isinstance(new_name_or_name_dict, str): vec.name = new_name_or_name_dict
#     return vec

# U.rename('baz', A='bar')

space

A(2) ⛒ B(3)

<xarray.DataArray 'boo' (A: 2, B: 3)> Size: 48B
array([[0., 0., 0.],
       [0., 0., 0.]])
Coordinates:
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'

xarray.DataArray

'boo'

• A: 2
• B: 3

• 0.0 0.0 0.0 0.0 0.0 0.0

  array([[0., 0., 0.],
         [0., 0., 0.]])

• Coordinates: (2)
  • A
    (A)
    int64
    1 2

    array([1, 2])

  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

U = space.ones({'C': [0]})
U

C(1) ⛒ A(2) ⛒ B(3)

<xarray.DataArray (C: 1, A: 2, B: 3)> Size: 48B
array([[[1., 1., 1.],
        [1., 1., 1.]]])
Coordinates:
  * C        (C) int64 8B 0
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'

xarray.DataArray

• C: 1
• A: 2
• B: 3

• 1.0 1.0 1.0 1.0 1.0 1.0

  array([[[1., 1., 1.],
          [1., 1., 1.]]])

• Coordinates: (3)
  • C
    (C)
    int64
    0

    array([0])

  • A
    (A)
    int64
    1 2

    array([1, 2])

  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

U.scal(2)

U.data

array([[[2., 2., 2.],
        [2., 2., 2.]]])

U * 1j

C(1) ⛒ A(2) ⛒ B(3)

<xarray.DataArray (C: 1, A: 2, B: 3)> Size: 96B
array([[[0.+2.j, 0.+2.j, 0.+2.j],
        [0.+2.j, 0.+2.j, 0.+2.j]]])
Coordinates:
  * C        (C) int64 8B 0
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'

xarray.DataArray

• C: 1
• A: 2
• B: 3

• 2j 2j 2j 2j 2j 2j

  array([[[0.+2.j, 0.+2.j, 0.+2.j],
          [0.+2.j, 0.+2.j, 0.+2.j]]])

• Coordinates: (3)
  • C
    (C)
    int64
    0

    array([0])

  • A
    (A)
    int64
    1 2

    array([1, 2])

  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

U1 = space.ones({'C': [0]})
U1

C(1) ⛒ A(2) ⛒ B(3)

<xarray.DataArray (C: 1, A: 2, B: 3)> Size: 48B
array([[[1., 1., 1.],
        [1., 1., 1.]]])
Coordinates:
  * C        (C) int64 8B 0
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'

xarray.DataArray

• C: 1
• A: 2
• B: 3

• 1.0 1.0 1.0 1.0 1.0 1.0

  array([[[1., 1., 1.],
          [1., 1., 1.]]])

• Coordinates: (3)
  • C
    (C)
    int64
    0

    array([0])

  • A
    (A)
    int64
    1 2

    array([1, 2])

  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

U2 = space.ones()
U2

∅ ⛒ A(2) ⛒ B(3)

<xarray.DataArray (A: 2, B: 3)> Size: 48B
array([[1., 1., 1.],
       [1., 1., 1.]])
Coordinates:
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'

xarray.DataArray

• A: 2
• B: 3

• 1.0 1.0 1.0 1.0 1.0 1.0

  array([[1., 1., 1.],
         [1., 1., 1.]])

• Coordinates: (2)
  • A
    (A)
    int64
    1 2

    array([1, 2])

  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

U1.axpy(2, U2)

U1

C(1) ⛒ A(2) ⛒ B(3)

<xarray.DataArray (C: 1, A: 2, B: 3)> Size: 48B
array([[[3., 3., 3.],
        [3., 3., 3.]]])
Coordinates:
  * C        (C) int64 8B 0
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'

xarray.DataArray

• C: 1
• A: 2
• B: 3

• 3.0 3.0 3.0 3.0 3.0 3.0

  array([[[3., 3., 3.],
          [3., 3., 3.]]])

• Coordinates: (3)
  • C
    (C)
    int64
    0

    array([0])

  • A
    (A)
    int64
    1 2

    array([1, 2])

  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

U1 = space.ones({'C': [0]})
U1

C(1) ⛒ A(2) ⛒ B(3)

<xarray.DataArray (C: 1, A: 2, B: 3)> Size: 48B
array([[[1., 1., 1.],
        [1., 1., 1.]]])
Coordinates:
  * C        (C) int64 8B 0
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'

xarray.DataArray

• C: 1
• A: 2
• B: 3

• 1.0 1.0 1.0 1.0 1.0 1.0

  array([[[1., 1., 1.],
          [1., 1., 1.]]])

• Coordinates: (3)
  • C
    (C)
    int64
    0

    array([0])

  • A
    (A)
    int64
    1 2

    array([1, 2])

  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

U1.axpy(2, U1)

U1

C(1) ⛒ A(2) ⛒ B(3)

<xarray.DataArray (C: 1, A: 2, B: 3)> Size: 48B
array([[[3., 3., 3.],
        [3., 3., 3.]]])
Coordinates:
  * C        (C) int64 8B 0
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'

xarray.DataArray

• C: 1
• A: 2
• B: 3

• 3.0 3.0 3.0 3.0 3.0 3.0

  array([[[3., 3., 3.],
          [3., 3., 3.]]])

• Coordinates: (3)
  • C
    (C)
    int64
    0

    array([0])

  • A
    (A)
    int64
    1 2

    array([1, 2])

  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

U1 = space.ones({'C': [0]})
U1

C(1) ⛒ A(2) ⛒ B(3)

<xarray.DataArray (C: 1, A: 2, B: 3)> Size: 48B
array([[[1., 1., 1.],
        [1., 1., 1.]]])
Coordinates:
  * C        (C) int64 8B 0
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'

xarray.DataArray

• C: 1
• A: 2
• B: 3

• 1.0 1.0 1.0 1.0 1.0 1.0

  array([[[1., 1., 1.],
          [1., 1., 1.]]])

• Coordinates: (3)
  • C
    (C)
    int64
    0

    array([0])

  • A
    (A)
    int64
    1 2

    array([1, 2])

  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

U1 + U1

C(1) ⛒ A(2) ⛒ B(3)

<xarray.DataArray (C: 1, A: 2, B: 3)> Size: 48B
array([[[2., 2., 2.],
        [2., 2., 2.]]])
Coordinates:
  * C        (C) int64 8B 0
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'

xarray.DataArray

• C: 1
• A: 2
• B: 3

• 2.0 2.0 2.0 2.0 2.0 2.0

  array([[[2., 2., 2.],
          [2., 2., 2.]]])

• Coordinates: (3)
  • C
    (C)
    int64
    0

    array([0])

  • A
    (A)
    int64
    1 2

    array([1, 2])

  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

U2 = space.ones()

U1 + U2

C(1) ⛒ A(2) ⛒ B(3)

<xarray.DataArray (C: 1, A: 2, B: 3)> Size: 48B
array([[[2., 2., 2.],
        [2., 2., 2.]]])
Coordinates:
  * C        (C) int64 8B 0
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'

xarray.DataArray

• C: 1
• A: 2
• B: 3

• 2.0 2.0 2.0 2.0 2.0 2.0

  array([[[2., 2., 2.],
          [2., 2., 2.]]])

• Coordinates: (3)
  • C
    (C)
    int64
    0

    array([0])

  • A
    (A)
    int64
    1 2

    array([1, 2])

  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

---

XarrayVectorArray.__mul__

def __mul__(
    other
):

U1 = space.ones({'C': [0]})

da = DataArray(np.arange(3), {'B': U1.array.B})
da

<xarray.DataArray (B: 3)> Size: 24B
array([0, 1, 2])
Coordinates:
  * B        (B) <U1 12B 'a' 'b' 'c'

xarray.DataArray

• B: 3

• 0 1 2

  array([0, 1, 2])

• Coordinates: (1)
  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

U1 * da

C(1) ⛒ A(2) ⛒ B(3)

<xarray.DataArray (C: 1, A: 2, B: 3)> Size: 48B
array([[[0., 1., 2.],
        [0., 1., 2.]]])
Coordinates:
  * C        (C) int64 8B 0
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'

xarray.DataArray

• C: 1
• A: 2
• B: 3

• 0.0 1.0 2.0 0.0 1.0 2.0

  array([[[0., 1., 2.],
          [0., 1., 2.]]])

• Coordinates: (3)
  • C
    (C)
    int64
    0

    array([0])

  • A
    (A)
    int64
    1 2

    array([1, 2])

  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

space.ones() * space2.zeros()

∅ ⛒ A(2) ⛒ B(3) ⛒ C(2) ⛒ D(3)

<xarray.DataArray (A: 2, B: 3, C: 2, D: 3)> Size: 288B
array([[[[0., 0., 0.],
         [0., 0., 0.]],

        [[0., 0., 0.],
         [0., 0., 0.]],

        [[0., 0., 0.],
         [0., 0., 0.]]],


       [[[0., 0., 0.],
         [0., 0., 0.]],

        [[0., 0., 0.],
         [0., 0., 0.]],

        [[0., 0., 0.],
         [0., 0., 0.]]]])
Coordinates:
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'
  * C        (C) int64 16B 1 2
  * D        (D) <U1 12B 'a' 'b' 'c'

xarray.DataArray

• A: 2
• B: 3
• C: 2
• D: 3

• 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 ... 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0

  array([[[[0., 0., 0.],
           [0., 0., 0.]],

          [[0., 0., 0.],
           [0., 0., 0.]],

          [[0., 0., 0.],
           [0., 0., 0.]]],


         [[[0., 0., 0.],
           [0., 0., 0.]],

          [[0., 0., 0.],
           [0., 0., 0.]],

          [[0., 0., 0.],
           [0., 0., 0.]]]])

• Coordinates: (4)
  • A
    (A)
    int64
    1 2

    array([1, 2])

  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

  • C
    (C)
    int64
    1 2

    array([1, 2])

  • D
    (D)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

U1 = space.ones()
U1

∅ ⛒ A(2) ⛒ B(3)

<xarray.DataArray (A: 2, B: 3)> Size: 48B
array([[1., 1., 1.],
       [1., 1., 1.]])
Coordinates:
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'

xarray.DataArray

• A: 2
• B: 3

• 1.0 1.0 1.0 1.0 1.0 1.0

  array([[1., 1., 1.],
         [1., 1., 1.]])

• Coordinates: (2)
  • A
    (A)
    int64
    1 2

    array([1, 2])

  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

U2 = XarrayVectorSpace(U1.array.B).from_numpy(np.arange(3), extended_coord_data={'C': [0]})
U2

C(1) ⛒ B(3)

<xarray.DataArray (C: 1, B: 3)> Size: 24B
array([[0, 1, 2]])
Coordinates:
  * C        (C) int64 8B 0
  * B        (B) <U1 12B 'a' 'b' 'c'

xarray.DataArray

• C: 1
• B: 3

• 0 1 2

  array([[0, 1, 2]])

• Coordinates: (2)
  • C
    (C)
    int64
    0

    array([0])

  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

U1 * U2

C(1) ⛒ A(2) ⛒ B(3)

<xarray.DataArray (C: 1, A: 2, B: 3)> Size: 48B
array([[[0., 1., 2.],
        [0., 1., 2.]]])
Coordinates:
  * C        (C) int64 8B 0
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'

xarray.DataArray

• C: 1
• A: 2
• B: 3

• 0.0 1.0 2.0 0.0 1.0 2.0

  array([[[0., 1., 2.],
          [0., 1., 2.]]])

• Coordinates: (3)
  • C
    (C)
    int64
    0

    array([0])

  • A
    (A)
    int64
    1 2

    array([1, 2])

  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

U1 * 1j

∅ ⛒ A(2) ⛒ B(3)

<xarray.DataArray (A: 2, B: 3)> Size: 96B
array([[0.+1.j, 0.+1.j, 0.+1.j],
       [0.+1.j, 0.+1.j, 0.+1.j]])
Coordinates:
  * A        (A) int64 16B 1 2
  * B        (B) <U1 12B 'a' 'b' 'c'

xarray.DataArray

• A: 2
• B: 3

• 1j 1j 1j 1j 1j 1j

  array([[0.+1.j, 0.+1.j, 0.+1.j],
         [0.+1.j, 0.+1.j, 0.+1.j]])

• Coordinates: (2)
  • A
    (A)
    int64
    1 2

    array([1, 2])

  • B
    (B)
    <U1
    'a' 'b' 'c'

    array(['a', 'b', 'c'], dtype='<U1')

space = XarrayVectorSpace({'A': [1], 'B': ['a', 'b']}, name='boo')
space

A(1) ⛒ B(2)

<xarray.DataArray 'boo' (A: 1, B: 2)> Size: 16B
array([[0., 0.]])
Coordinates:
  * A        (A) int64 8B 1
  * B        (B) <U1 8B 'a' 'b'

xarray.DataArray

'boo'

• A: 1
• B: 2

• 0.0 0.0

  array([[0., 0.]])

• Coordinates: (2)
  • A
    (A)
    int64
    1

    array([1])

  • B
    (B)
    <U1
    'a' 'b'

    array(['a', 'b'], dtype='<U1')

U = space.ones({'C': range(2)}) + 1j * space.ones({'C': range(2)})

U.real

C(2) ⛒ A(1) ⛒ B(2)

<xarray.DataArray (C: 2, A: 1, B: 2)> Size: 32B
array([[[1., 1.]],

       [[1., 1.]]])
Coordinates:
  * C        (C) int64 16B 0 1
  * A        (A) int64 8B 1
  * B        (B) <U1 8B 'a' 'b'

xarray.DataArray

• C: 2
• A: 1
• B: 2

• 1.0 1.0 1.0 1.0

  array([[[1., 1.]],

         [[1., 1.]]])

• Coordinates: (3)
  • C
    (C)
    int64
    0 1

    array([0, 1])

  • A
    (A)
    int64
    1

    array([1])

  • B
    (B)
    <U1
    'a' 'b'

    array(['a', 'b'], dtype='<U1')

U.imag

C(2) ⛒ A(1) ⛒ B(2)

<xarray.DataArray (C: 2, A: 1, B: 2)> Size: 32B
array([[[1., 1.]],

       [[1., 1.]]])
Coordinates:
  * C        (C) int64 16B 0 1
  * A        (A) int64 8B 1
  * B        (B) <U1 8B 'a' 'b'

xarray.DataArray

• C: 2
• A: 1
• B: 2

• 1.0 1.0 1.0 1.0

  array([[[1., 1.]],

         [[1., 1.]]])

• Coordinates: (3)
  • C
    (C)
    int64
    0 1

    array([0, 1])

  • A
    (A)
    int64
    1

    array([1])

  • B
    (B)
    <U1
    'a' 'b'

    array(['a', 'b'], dtype='<U1')

U

C(2) ⛒ A(1) ⛒ B(2)

<xarray.DataArray (C: 2, A: 1, B: 2)> Size: 64B
array([[[1.+1.j, 1.+1.j]],

       [[1.+1.j, 1.+1.j]]])
Coordinates:
  * C        (C) int64 16B 0 1
  * A        (A) int64 8B 1
  * B        (B) <U1 8B 'a' 'b'

xarray.DataArray

• C: 2
• A: 1
• B: 2

• (1+1j) (1+1j) (1+1j) (1+1j)

  array([[[1.+1.j, 1.+1.j]],

         [[1.+1.j, 1.+1.j]]])

• Coordinates: (3)
  • C
    (C)
    int64
    0 1

    array([0, 1])

  • A
    (A)
    int64
    1

    array([1])

  • B
    (B)
    <U1
    'a' 'b'

    array(['a', 'b'], dtype='<U1')

U.conj()

C(2) ⛒ A(1) ⛒ B(2)

<xarray.DataArray (C: 2, A: 1, B: 2)> Size: 64B
array([[[1.-1.j, 1.-1.j]],

       [[1.-1.j, 1.-1.j]]])
Coordinates:
  * C        (C) int64 16B 0 1
  * A        (A) int64 8B 1
  * B        (B) <U1 8B 'a' 'b'

xarray.DataArray

• C: 2
• A: 1
• B: 2

• (1-1j) (1-1j) (1-1j) (1-1j)

  array([[[1.-1.j, 1.-1.j]],

         [[1.-1.j, 1.-1.j]]])

• Coordinates: (3)
  • C
    (C)
    int64
    0 1

    array([0, 1])

  • A
    (A)
    int64
    1

    array([1])

  • B
    (B)
    <U1
    'a' 'b'

    array(['a', 'b'], dtype='<U1')

U.reim

Part(2) ⛒ C(2) ⛒ A(1) ⛒ B(2)

<xarray.DataArray (Part: 2, C: 2, A: 1, B: 2)> Size: 64B
array([[[[1., 1.]],

        [[1., 1.]]],


       [[[1., 1.]],

        [[1., 1.]]]])
Coordinates:
  * Part     (Part) <U2 16B 'Re' 'Im'
  * C        (C) int64 16B 0 1
  * A        (A) int64 8B 1
  * B        (B) <U1 8B 'a' 'b'

xarray.DataArray

• Part: 2
• C: 2
• A: 1
• B: 2

• 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0

  array([[[[1., 1.]],

          [[1., 1.]]],


         [[[1., 1.]],

          [[1., 1.]]]])

• Coordinates: (4)
  • Part
    (Part)
    <U2
    'Re' 'Im'

    array(['Re', 'Im'], dtype='<U2')

  • C
    (C)
    int64
    0 1

    array([0, 1])

  • A
    (A)
    int64
    1

    array([1])

  • B
    (B)
    <U1
    'a' 'b'

    array(['a', 'b'], dtype='<U1')

# #|export
# def _plotly_automargin(plot, element):
#     plot.state['layout']['yaxis']['automargin'] = True
#     plot.state['layout']['xaxis']['automargin'] = True

# #|export
# def _delete(string, strings):
#     for s in strings: string = string.replace(s, '')
#     return string

# #|export
# def _set_scrubber_fractional_value(column, fraction):
#     scrubber = column.objects[1].objects[0]
#     scrubber.value = round(scrubber.end * fraction)

# #|export
# def _scaled_loc(arr, fraction):
#     return arr[int(len(arr) * fraction)]

---

XarrayVectorArray.visualize

def visualize(
    slider_label_precision:int=2
):

Visualize the data contained in the XarrayVectorArray. Put the first dimension with numerical coordinates on the x axis, and include a scrubber if there is a second numerical dimension. Atomic velocity is prioritized to be on the x axis, time is prioritized to be on the scrubber. Put categorical dimensions in the legend. If the data are complex, add the real and imaginary parts as a categorical dimension. If there are no numerical dimensions, plot the categorical dimension(s) as a horizontal bar plot.

space = XarrayVectorSpace({'foo': ['aaaaaaaaaaaaaaaaaa', 'b', 'c']})
U1 = space.random(name='bar')
U2 = 1j * space.random(name='bar')
U3 = space.random({'baz': np.arange(5)}, name='bar')
U4 = 1j * space.random({'baz': np.arange(5)}, name='bar')
U5 = space.random({'baz': np.arange(5), 'bing': .000123456 * np.linspace(0, 5, 6)}, name='bar')

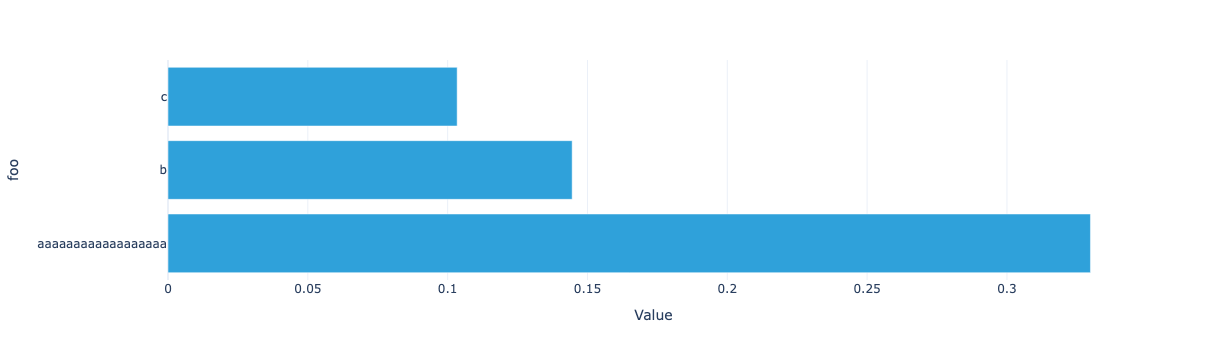

U1.visualize()

(U1 + U2).visualize()

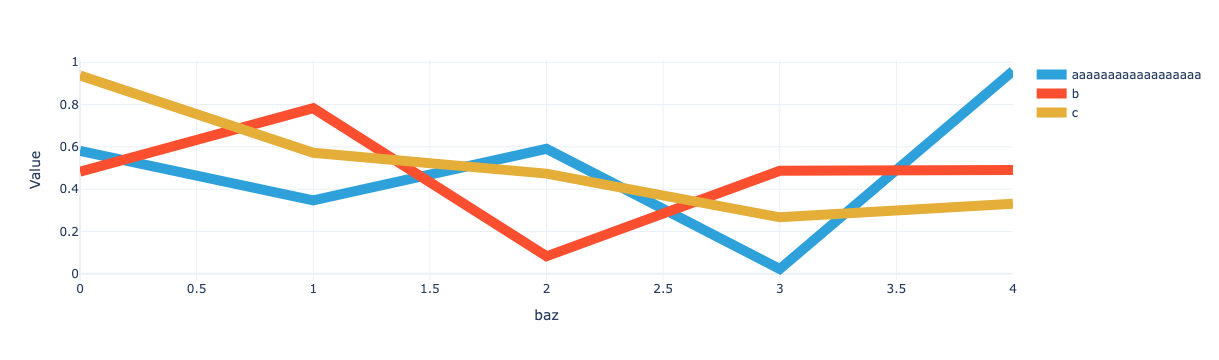

U3.visualize(line_width=10)

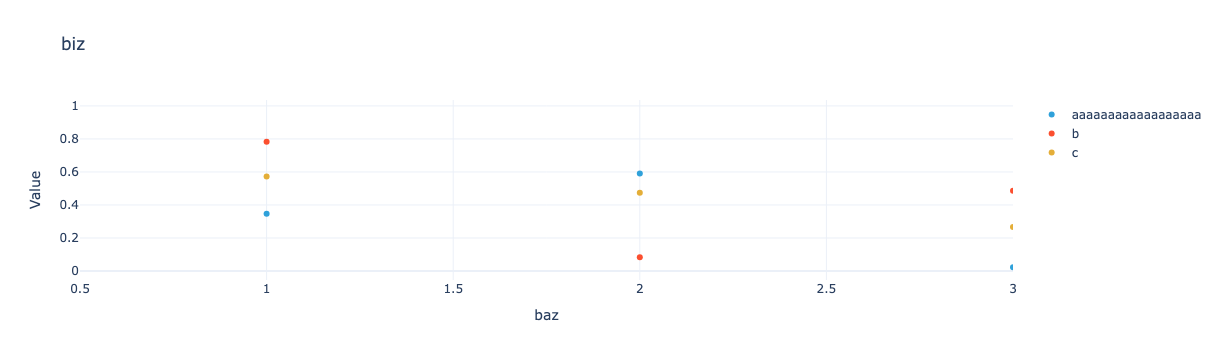

U3.visualize(title='biz', markers=True, xaxis_range=(.5, 3), line_width=0)

(U3 + U4).visualize()

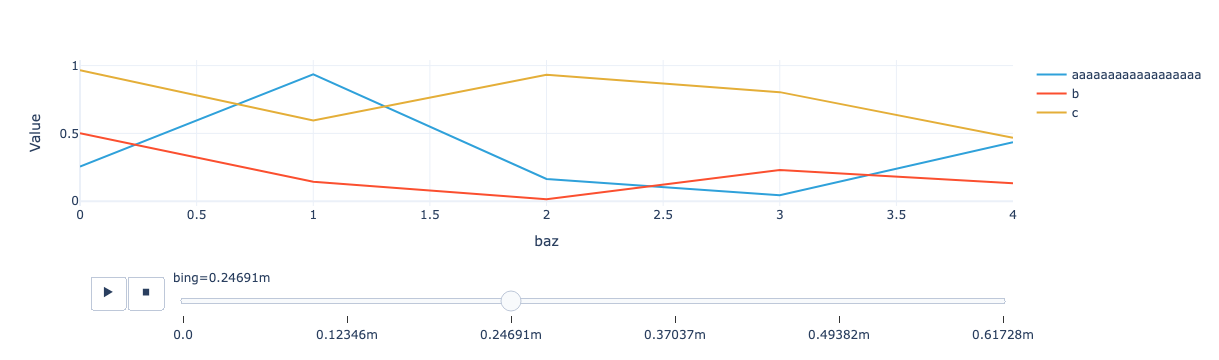

U5.visualize(slider_label_precision=5)
